Custom Plastic Parts & Injection Molding Support

Organize feasibility, tooling, sampling and production around what the part must actually do.

Share a part or drawing See real references

Real evidence below

Open the project references to see uncropped component photography.

Real project context

One image. One manufacturing question.

The images below remain unretouched and uncropped so teeth, holes, shafts, wall profiles and mating features stay visible. Customer identities and confidential dimensions are not shown.

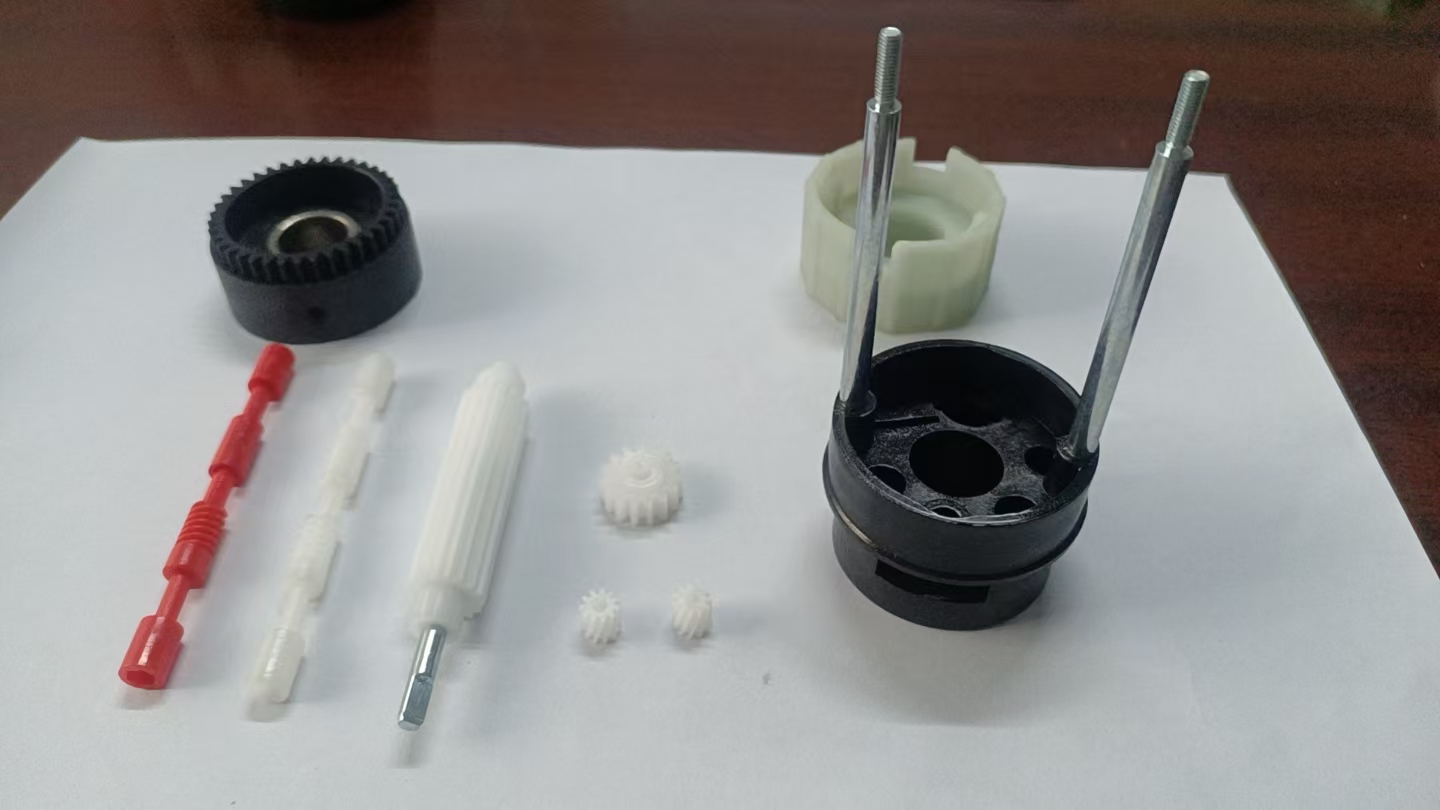

Full component system with gears, shafts and molded housings

01 / System view

Understand the part family before pricing one piece.

This reference shows molded gears, shafts, rings and housing elements together. That context matters because material choice, dimensional control and assembly interfaces often belong to the same system.

Useful input: Complete sample set or assembly photos
Early focus: Interfaces, wear areas and assembly sequence

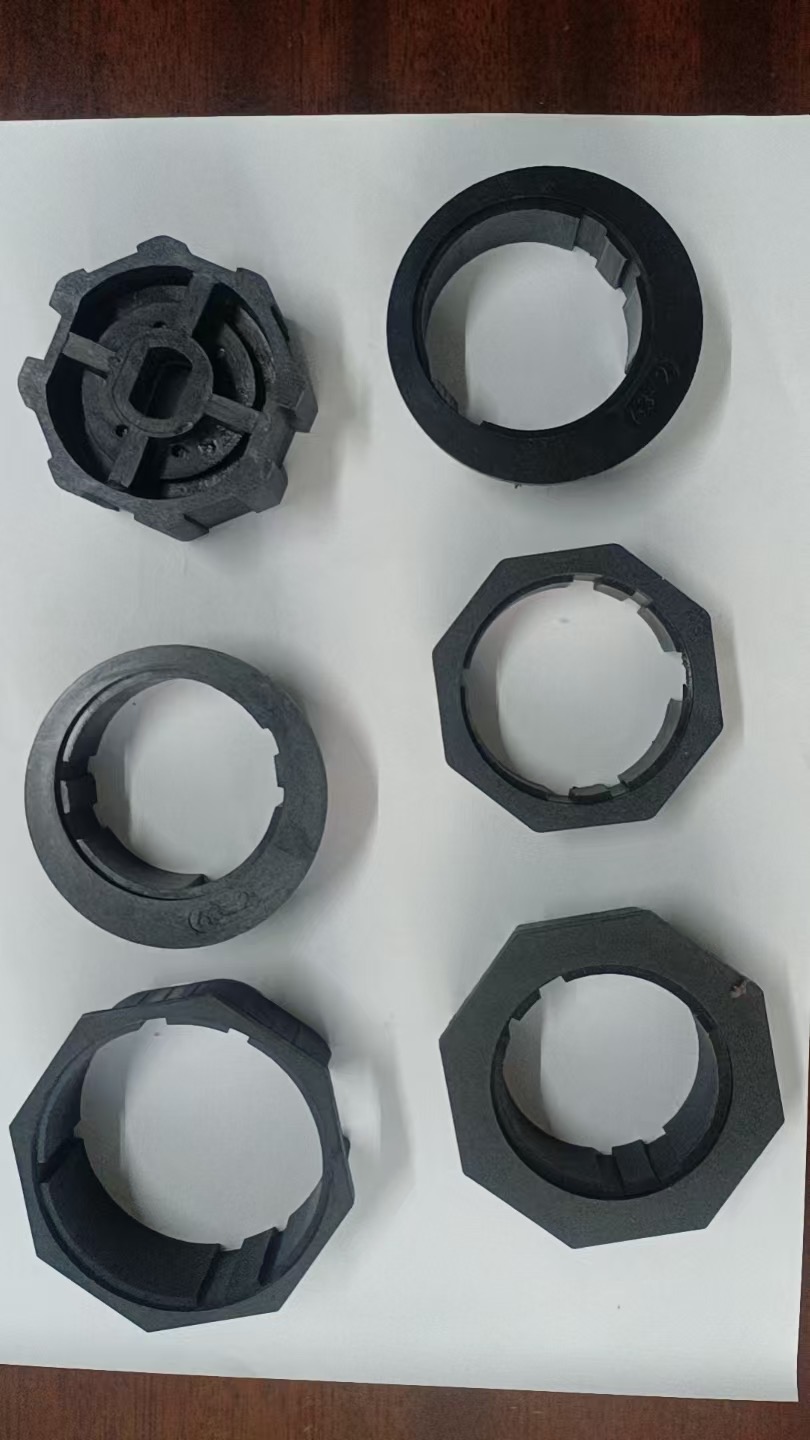

Full uncropped photograph of molded rings and keyed profiles

02 / Interface details

Profiles and mating features drive feasibility.

The inner keys, outer flats, wall thickness and locating features are more important than a polished photograph. Keeping the full image visible allows those differences to be discussed without hiding the edges.

Useful input: Critical diameters, fit and mating-part details
Early focus: Shrinkage, alignment and repeatable geometry

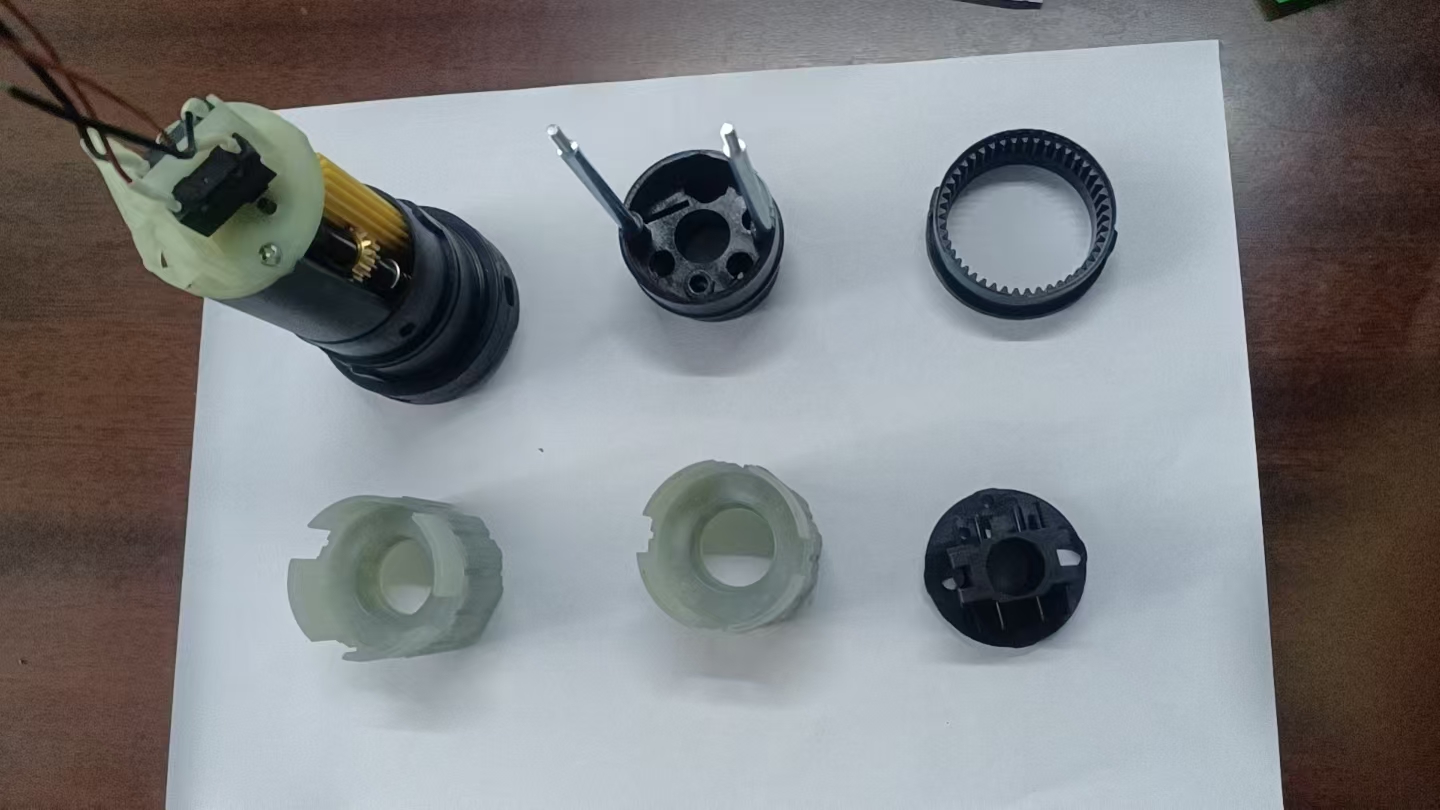

Full uncropped photograph of molded parts arranged with a partial assembly

03 / Assembly context

A molded part is approved in the way it will be used.

Individual pieces may look acceptable on their own but still need fit, motion and assembly review. A sample or functional reference helps define what the approval stage must prove.

Useful input: Working sample, movement and load description
Early focus: Fit, function, trial feedback and revision control
